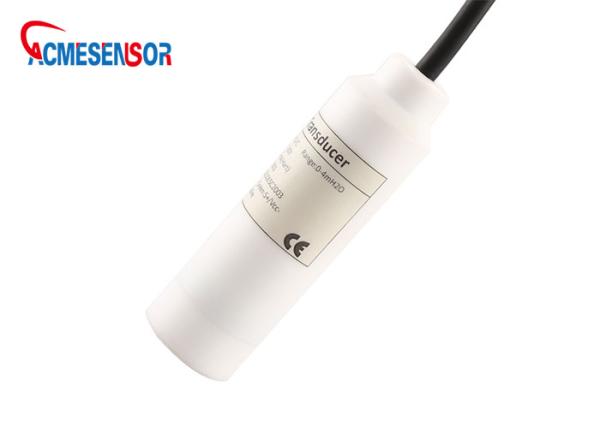

Introduction of Water level sensor
APT302 level sensor uses ceramic core as the sensitive element. It
is high reliability high stability high accuracy Level or pressure
is mainly used to measure the corrosive liquid level and gas.
♦The product uses a titanium alloy PTFE shell, ceramic core adopt
programmable transmitter conversion circuit and can facilitate the
calibration of zero and full scale Resistance to abrasion,oil,acid
& alkali and high intensity gas lead cable can be selected for
customer s need.
Specifications
| Name | APT302 |
| Measurement Range | 0...1…200mH2O |
| Overload pressure | 2 times rated pressure |
| Failure pressure | 4 times rated pressure |
| Accuracy | ±0.1%F.S, ±0.25%F.S |
| Stability | Standard: 0.1%F.S±0.05% |
| Working Temp | -20℃~80℃ |
| Compensation temperature | 0℃~70℃ |
| Medium compatibility | Compatible with 316L Stainless Steel or Titanium Alloy or PTFE
materiel |
| Electrics feature | Two-wire type | Three-wire type |
| Signal output | 4~20mA | 0.5~4.5V | 0-5V, 1~5 V |
| Power supply | 12~36 V DC | 5V DC | 12~36 V DC |
| Temperature output | 4~20mA or resistance signal; Range: -10…100 degree C |
| Insulate resistance | >100MΩ @500V dc |
| Electrics connector | Fixed cable and water proof IP68 |
| Resolution | Infinite small (theories), 1/100000 (usually) |
| Response time | ≤10 ms (standard); ≤1 ms (Customized) |
| Pressure form | Gauge pressure: G, Absolute pressure: A |
| Certification | Explosion proof certification, CE certification. Rosh certification |
FAQ
Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or
the bottom of this page.
Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for all of our
products.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as
soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the
certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the
best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us
and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q. How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or
logistics by indicator
